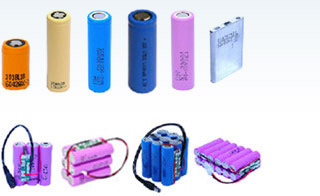

 배터리 특성 |
 높은 에너지밀도 (소형, 경량화)
우수한 충방전 특성 (메모리효과 없슴)
긴 Life Cycle, 낮은 자가방전율
넓은 동작온도 범위 ( -20 ℃ to +60℃)
공칭전압 3.7V/Cell, 500회 충방전 가능 |
| |
| 적용분야 |
전동오토바이, 지능형로봇, 하이브리드자동차,
산업용기기
스마트폰, 타블렛PC, PDA, 통신기기
의료기기, 모형비행기, 미용기기
무전기, 블랙박스, 무선마이크 |
|
|
|
| Li-ion Battery Pack (18650, 2.6Ah) |
| |
| Cell |
Model |
Norminal
Voltage
(V) |
Charge
Method
(V) |
Cut-off
Voltage
(V) |
Discharge
Current
(mA) |
Norminal
Capacity
(mAh) |
| 1 CELL |
1S1P |
3.6V |
4.2V
(CC-CV) |
3.0V |
0.2C(500mA) -
1.5C(3,750mA) |
Norminal 2,600mAh
(Minimum 2,500mAh) |
| 2 CELL |
2S1P |
7.2V |
8.4V
(CC-CV) |
6.0V |
0.2C(500mA) -
1.5C(3,750mA) |
2,600mAh |
| 1S2P |
3.6V |
4.2V
(CC-CV) |
3.0V |
0.2C(1,000mA) -
1.5C(7,500mA) |
5,200mAh |
| 3 CELL |
3S1P |
10.8V |
12.6V
(CC-CV) |
9.0V |
0.2C(500mA) -
1.5C(3,750mA) |
2,600mAh |
| 1S3P |
3.6V |
4.2V
(CC-CV) |
3.0V |
0.2C(1,500mA) -
1.5C(11,250mA) |
7,800mAh |
| 4 CELL |
4S1P |
14.4V |
16.8V
(CC-CV)
|
12.0V |
0.2C(500mA) -
1.5C(3,750mA) |
2,600mAh |
| 2S2P |
7.2V |
8.4V
(CC-CV) |
6.0V |
0.2C(1,000mA) -
1.5C(7,500mA) |
5,200mAh |
| 1S4P |
3.6V |
4.2V
(CC-CV) |
3.0V |
0.2C(2,000mA) -
1.5C(15,000mA) |
10,400mAh |
| 5 CELL |
5S1P |
18.0V |
21.0V
(CC-CV) |
15.0V |
0.2C(500mA) -
1.5C(3,750mA) |
2,600mAh |
| 1S5P |
3.6V |
4.2V
(CC-CV) |
3.0V |
0.2C(2,500mA) -
1.5C(18,750mA) |
13,000mAh |
| 6 CELL |
6S1P |
21.6V |
25.2V
(CC-CV) |
18.0V |
0.2C(500mA) -
1.5C(3,750mA) |
2,600mAh |
| 3S2P |
10.8V |
12.6V
(CC-CV) |
9.0V |
0.2C(1,000mA) -
1.5C(7,500mA) |
5,200mAh |
| 2S3P |
7.2V |
8.4V
(CC-CV) |
6.0V |
0.2C(1,500mA) -
1.5C(15,000mA) |
7,800mAh |
| 1S6P |
3.6V |
4.2V
(CC-CV) |
3.0V |
0.2C(3,000mA) -
1.5C(22,500mA) |
15,600mAh |
| 7 CELL |
7S1P |
18.0V |
21.0V
(CC-CV) |
15.0V |
0.2C(500mA) -
1.5C(3,750mA) |
2,600mAh |
| 1S7P |
3.6V |
4.2V
(CC-CV) |
3.0V |
0.2C(3,500mA) -
1.5C(26,250mA) |
18,200mAh |
| 8 CELL |
8S1P |
28.8V |
33.6V
(CC-CV) |
24.0V |
0.2C(500mA) -
1.5C(3,750mA) |
2,600mAh |
| 4S2P |
14.4V |
16.8V
(CC-CV) |
12.0V |
0.2C(1,000mA) -
1.5C(7,500mA) |
5,200mAh |
| 2S4P |
7.2V |
8.4V
(CC-CV) |
6.0V |
0.2C(2,000mA) -
1.5C(15,000mA) |
10,400mAh |
| 1S8P |
3.6V |
4.2V
(CC-CV) |
3.0V |
0.2C(4,000mA) -
1.5C(30,000mA) |
20,800mAh |
|
| |
| * 8CELL이상 조합PACK 공급중 |
| |
| 원통형 리튬이온 배터리 |
| |
| 모델 |
전압 (V) |
용량(mAh) |
내부저항 <ohm> |
사이즈 <mm> |
중량 (g) |
| ICR07300 |
3.7 |
100 |
<80 |
￠7.1-0.3*31.0 |
10 |
| ICR08240 |
3.7 |
80 |
<80 |
￠8.1-0.3*24.0 |
|
| ICR08350 |
3.7 |
120 |
<80 |
￠8.1-0.3*35.0 |
|
| ICR08400 |
3.7 |
150 |
<80 |
￠8.1-0.3*39.7 |
|
| ICR10160 |
3.7 |
80 |
<80 |
￠10.2-0.3*16.0 |
|
| ICR10180 |
3.7 |
100 |
<80 |
￠10.2-0.3*18.0 |
|
| ICR10220 |
3.7 |
130 |
<80 |
￠10.2-0.3*22.0 |
|
| ICR10250 |
3.7 |
150 |
<80 |
￠10.2-0.3*25.0 |
|
| ICR10280 |
3.7 |
180 |
<80 |
￠10.2-0.3*28.0 |
|
| ICR10300 |
3.7 |
220 |
<80 |
￠10.2-0.3*30.0 |
|
| ICR10430 |
3.7 |
320 |
<80 |
￠10.2-0.3*43.0 |
|
| ICR10440 |
3.7 |
360 |
<80 |
￠10.2-0.3*44.0 |
|
| ICR12300 |
3.7 |
280 |
<80 |
￠12.2-0.3*29.7.0 |
|
| ICR13440 |
3.7 |
360 |
<80 |
￠13.2-0.3*43.7 |
|
| ICR13490 |
3.7 |
600 |
<80 |
￠13.2-0.3*78.7 |
|
| ICR14250 |
3.7 |
280 |
<80 |
￠14.3-0.3*25.0 |
10 |
| ICR14430 |
3.7 |
600~700 |
<80 |
￠14.3-0.3*43.0 |
17 |
| ICR14500 |
3.7 |
700~800 |
<80 |
￠14.3-0.3*50.0 |
20 |
| ICR14650 |
3.7 |
1100 |
<80 |
￠14.3-0.3*64.5 |
24 |
| ICR15226 |
3.7 |
300 |
<80 |
￠15.3-0.3*22.6 |
11 |
| ICR15266 |
3.7 |
350 |
<80 |
￠15.3-0.3*26.5 |
|
| ICR16340 |
3.7 |
600~650 |
<80 |
￠16.3-0.3*34.0 |
18 |
| ICR17280 |
3.7 |
600 |
<80 |
￠17.3-0.3*27.5 |
15 |
| ICR17305 |
3.7 |
550 |
<80 |
￠16.8-0.3*30.5 |
|
| ICR17335 |
3.7 |
700 |
<80 |
￠17.3-0.3*33.5 |
18 |
| ICR17360 |
3.7 |
750 |
<80 |
￠17.3-0.3*36.0 |
19 |
| ICR17500 |
3.7 |
1100 |
<80 |
￠17.3-0.3*48.5 |
29 |
| ICR17650 |
3.7 |
1400~1600 |
<80 |
￠17.3-0.3*65.0 |
35 |
| ICR18490 |
3.7 |
1400 |
<80 |
￠18.3-0.3*48.5 |
34 |
| ICR18500 |
3.7 |
1400 |
<80 |
￠18.3-0.3*50.0 |
34 |
| ICR18650 |
3.7 |
1900~2600 |
<80 |
￠18.3-0.3*65.0 |
46 |
| ICR26650 |
3.7 |
3200 |
<80 |
￠26.3-0.3*64.5 |
65 |
| ICR32650 |
3.7 |
4200 |
<80 |
￠32-0.3*65.0 |
135 |
|
| |
| 각형리튬이온배터리 |
| |
| Model |
Norminal
Capacity
(mAh) |
Norminal
Voltage
(V) |
Charge
Method |
Max.
Charge
Current
(mA) |
Discharge
Voltage
(V) |
Discharge
Current
(mA) |
Max. Dimension (mm) |
Max.
Weight
(g) |
Thick
ness |
Width |
Length |
| ICP423443 |
830 |
3.70 |
4.2V
(CC-CV) |
810 |
2.75 |
0.2C (162mA)
2.0C (1620mA) |
4.50 |
33.90 |
42.60 |
15.7 |
| ICP523443 |
970 |
3.70 |
4.2V
(CC-CV) |
950 |
2.75 |
0.2C (190mA)
2.0C (1900mA) |
5.40 |
33.85 |
42.60 |
17.9 |
| ICP423446 |
900 |
3.70 |
4.2V
(CC-CV) |
850 |
2.75 |
0.2C (170mA)
2.0C (1700mA) |
4.50 |
33.90 |
45.60 |
16.2 |
| ICP523443 |
1050 |
3.70 |
4.2V
(CC-CV) |
1020 |
2.75 |
0.2C (204mA)
2.0C (2040mA) |
5.40 |
33.85 |
45.60 |
18.9 |
| ICP363450 |
840 |
3.70 |
4.2V
(CC-CV) |
800 |
2.75 |
0.2C (160mA)
2.0C (1600mA) |
3.85 |
33.85 |
49.60 |
15.5 |
| ICP423450 |
980 |
3.70 |
4.2V
(CC-CV) |
920 |
2.75 |
0.2C (184mA)
2.0C (1840mA) |
4.50 |
33.90 |
49.60 |
17.9 |
| ICP523450 |
1180 |
3.70 |
4.2V
(CC-CV) |
1150 |
2.75 |
0.2C (230mA)
2.0C (2300mA) |
5.45 |
33.85 |
49.60 |
21.0 |
| ICP403857 |
1050 |
3.70 |
4.2V
(CC-CV) |
1000 |
2.75 |
0.2C (200mA)
2.0C (2000mA) |
4.25 |
37.95 |
57.00 |
20.8 |
|
|
| |
|
